Can You Pipe In Grout? A Practical DIY Guide
Learn how to grout around pipe penetrations in tile, including epoxy versus cement grout, prep steps, and finishing tips for durable, moisture-resistant results.
Yes, you can pipe in grout around pipe penetrations in tile, but you must plan for movement and moisture. The best approach depends on location and grout type: epoxy grout performs well in wet areas, while cement-based grout requires expansion gaps and careful sealing. Start with thorough preparation, use backer support where needed, and seal the edge after curing.
Can You Pipe In Grout: Key Considerations
In tile installations, pipe penetrations demand thoughtful planning. The question can you pipe in grout is resolved by assessing movement, moisture exposure, and edge quality. Pipes introduce dynamic stresses from temperature changes and plumbing shifts, which can crack rigid cement-based grout if gaps are not allowed to move. A common homeowner pitfall is assuming one grout type fits all situations. The safe, practical answer is: you can, but only with the right materials and preparation. Start by inspecting the penetration, measuring the gap, and deciding whether an expansion joint is needed. Label the area so you don’t confuse a pipe sleeve with a simple corner. Throughout this guide, you’ll see how Grout Maintenance teams approach pipe penetrations to deliver long-lasting grout lines that resist cracking and moisture intrusion.
The Right Grout Types for Pipe Penetrations
Choosing the right grout is critical when you’re around pipe penetrations. Epoxy grout is generally preferred in moisture-prone areas because it resists water penetration and staining better than cement-based grout. It also tolerates slight movement without cracking as easily. Cement-based grout, while easier to work with and cheaper, can crack or crumble in high-movement zones unless you install proper expansion joints and sealants. For showers or wet rooms, epoxy around pipes is usually the better option, paired with a flexible sealant at the joint where tile meets the pipe. Always follow product labels for mixing ratios and cure times, and consider a test area before committing to full installation. Can you pipe in grout? Yes—just match the grout type to the conditions and ensure you protect vulnerable edges with appropriate seals and backer support.
Preparing the Area Before Grouting
Preparation is the backbone of a durable pipe penetration job. Remove loose old grout and debris from around the pipe, ensuring a clean, dry surface. If the gap around the pipe is too wide, insert backer rod to create a consistent depth and to give the grout something to bite into. This helps prevent over-compression and future cracking. For wet areas, wipe down the surrounding tiles and consider masking adjacent edges to keep grout lines neat. Decide early whether you will use epoxy grout or cement-based grout, then gather your materials. Grout around pipes benefits from a thorough skim coat and careful compaction to minimize voids. When you ask, can you pipe in grout, the answer hinges on clean work areas, correct material selection, and proper joint preparation.
Step-By-Step Approach to Grouting Around Pipes
This section expands your plan into actionable steps. Start by dry-fitting any sleeves or inserts, then clean the opening and remove all moisture. Apply backer rod to establish appropriate depth and ensure a uniform grout bed. Mix your chosen grout according to the manufacturer’s instructions, then press it firmly into the joint around the pipe with a grout float. After filling, scrape off excess and wipe the tiles with a damp sponge to remove haze. Finally, seal the joint or edges around the pipe as recommended by the grout and sealant manufacturers. Remember, can you pipe in grout depends on rigorous preparation and choosing the right grout for the environment.
Finishing Touches: Sealing, Maintenance, and Troubleshooting
Once cured, seal the grout if your product requires it, especially in showers or kitchens where moisture is prevalent. Sealing helps resist mildew and makes cleaning easier. Inspect edges around the pipe for any gaps that may need a rework or additional sealant. If you notice cracking or high movement after installation, re-seal or replace grout with a more flexible product in that area. Regular maintenance—wiping down mandating areas and resealing every few years—extends the life of grout around pipe penetrations. The key takeaway: can you pipe in grout successfully is contingent on moisture control, movement accommodation, and proper edge sealing.
Common Mistakes to Avoid
Avoid choosing cement-based grout for areas with significant movement or moisture around pipes. Don’t skip backer rod where required; without it, joints can crack or crumble. Avoid rushing the cleanup step, as haze left on tiles can require heavy polishing or chemical haze removers. Finally, never ignore cure times—premature exposure to moisture can undermine joints and shorten the grout’s lifespan. By steering clear of these mistakes and following best practices, you’ll achieve a durable, water-resistant grout line around pipes.
Tools & Materials
- Epoxy grout kit(Includes resin-based grout and hardener; ideal for moisture-prone areas around pipes.)
- Cement-based grout mix(Alternative for low-moisture zones when epoxy is not available.)
- Backer rod (foam)(Select width to match joint depth; helps control grout depth and movement.)
- Silicone caulk or polyurethane sealant(Seal gaps between tile edge and pipe for a watertight finish.)
- Grout float(Press grout into joints and remove excess for a smooth finish.)
- Margin trowel(For detail work and removing excess grout from tight spaces.)
- Sponge and clean water(Easy haze removal during and after grouting.)
- Caulking gun(Use for applying sealant in tight around pipes.)
- Masking tape(Protects adjacent tiles during caulking.)
- Gloves and eye protection(Safety first when handling epoxy and sharp tools.)
- Grout sealer (optional)(Enhances stain resistance on cement-based grout.)
- Utility knife(Trim backer rod or grout for a clean edge.)

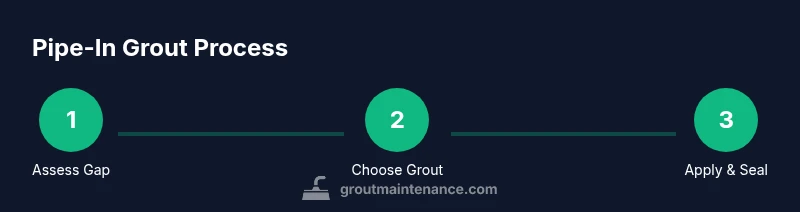

Steps
Estimated time: 60-90 minutes
- 1
Assess the area and select grout
Inspect the pipe penetration, measure the gap, and decide on either epoxy grout for moisture zones or cement-based grout for drier areas. Consider movement expectations and the need for expansion joints. This planning stage determines compatibility with your tile and plumbing layout.
Tip: Take photos of the area and sketch the penetration to guide your plan. - 2
Prepare the joint and area
Remove loose grout and debris. If the gap is deep, insert backer rod to a consistent depth. Ensure the surface is clean and dry; moisture can undermine adhesion.
Tip: Mask surrounding tiles to prevent accidental grout on unwanted areas. - 3
Mix and apply grout
Prepare epoxy or cement-based grout per product instructions. Use a grout float to press the material into the joint around the pipe, ensuring no voids. Work in small sections to maintain control.
Tip: Work quickly with epoxy grout to avoid premature setting. - 4
Finish joints and edges
Scrape off excess grout and wipe the tiles with a damp sponge to remove haze. If using sealant, apply along the edge where tile meets the pipe for a watertight seal.
Tip: Avoid over-wetting the grout, which can weaken the finish. - 5
Cure and seal
Allow the grout to cure according to the manufacturer’s guidance. In moisture-prone areas, plan for proper curing time before exposure to water. Apply grout sealer if recommended.
Tip: Label cure times on the project plan to prevent early use. - 6
Inspect and maintain
Check joints after the first cleaning and after the area dries. Re-seal or rework any spots that show cracking or wear, especially around pipes where movement is likely.
Tip: Set a yearly maintenance reminder to reseal grout around penetrations.
Got Questions?
Can epoxy grout be used around pipe penetrations?
Yes. Epoxy grout is typically preferred around pipe penetrations in moisture-prone areas due to its durability and resistance to moisture. It handles movement better than cement-based grout when used with proper expansion joints.
Yes, epoxy grout is usually best around pipe penetrations in wet areas. Follow the product directions for mixing and curing.
Do I need backer rod or caulk around pipe penetrations?
Yes. Use backer rod to establish a proper depth and allow for movement. Finish with silicone or polyurethane caulk at the joint between tile and pipe for a watertight seal.
Yes—backer rod helps with depth and movement, and sealant finishes the edge against moisture.
Can I use cement-based grout around pipes in a shower?
Cement-based grout can be used in some cases, but epoxy grout is generally safer around pipe penetrations in showers due to higher moisture exposure and movement. If you use cement-based grout, ensure proper expansion joints and sealing.
Cement grout works in some cases, but epoxy is usually more reliable around pipes in showers.
How long does epoxy grout take to cure around pipes?
Cure times vary by product, but plan for substantial curing before heavy moisture exposure. Always follow the product label for exact times and re-sealing recommendations.
Cure times depend on the product; expect longer times before moisture exposure and follow the label.
Can I regrout around a pipe without removing surrounding tiles?
Partial removal around a pipe can be possible with careful chiseling, but it depends on grout condition and access. In tight spaces, tile replacement may be necessary.
Sometimes you can regrout without removing tiles, but it depends on access and grout condition.
What tools are essential for grouting around pipes?
You’ll need a grout float, backer rod, epoxy or cement grout, sealant, sponge, and a clean cloth for haze removal. A caulking gun and masking tape can help with neat edges.
Essential tools include a grout float, backer rod, grout, sealant, sponge, and cloth.
Watch Video
The Essentials
- Plan for movement and moisture around pipe penetrations.
- Choose epoxy grout for wet zones around pipes for durability.
- Use backer rod and proper sealant at the pipe edge for a tight finish.
- Prepare, apply, and cure per product guidelines for best results.
- Regular maintenance extends grout life around penetrations.
