How to Test Grout Strength: Field and Lab Methods Guide
Learn practical, step-by-step methods to test grout strength for tiled surfaces, including field scratch tests, compression cube samples, and adhesion checks, plus safety tips and repair guidance for homeowners.
To test grout strength, perform practical field checks on an installed installation and, if possible, a small test sample. Start with a simple scratch drag along the grout line, then try a moderate press with a wooden pry or stiff blade to gauge flex, and finish with a basic adhesion pull test. Allow grout to cure fully before testing.
What grout strength means and why it matters
Grout strength is a key indicator of how well the grout will hold up under daily wear, cleaning, and temperature changes. For homeowners, understanding grout strength helps determine whether a tile installation needs resealing, regrouting, or a full grout replacement. According to Grout Maintenance, grout strength reflects the bond between the grout and tile, the ratio of cement to water, curing conditions, and the presence of additives. When grout is too weak, edges can crumble, joints can crack, and tiles may loose their grip over time. This is not just a cosmetic concern—weak grout can allow moisture to penetrate and cause substrate damage. By testing grout strength, you gain insight into maintenance needs and long-term durability, which is especially important in wet areas like showers or kitchens. The Grout Maintenance team found that variability in mixing, curing, and tile installation quality often drives discrepancies in grout performance across rooms in the same home, underscoring the value of a systematic test approach.
Field vs lab testing: when to use which
In most residential scenarios, field tests give quick, practical indications of grout health without special equipment. Lab-style tests, while more precise, require samples and controlled conditions. Grout Maintenance analysis shows that field scratch tests can reveal surface brittleness, while simple pull or adhesion checks gauge how well grout adheres to tile edges. For heavier-duty applications, producing cured grout cubes from a sample and testing compressive strength in a basement workshop or a local testing lab yields more comparable data to industry standards. When assessing safety and function, combine both approaches: start with field observations, then consider lab testing if a failure is suspected or if the project involves high-moisture zones or large tile installations.
Common test methods for grout strength
There are several practical ways to assess grout strength, ranging from quick field checks to more formal cube tests. The most accessible method is a scratch test: you run a fingernail or a plastic blade along grout joints to feel for softness or crumbly texture. A modest amount of pressure with a wooden tool can reveal surface brittleness. For more rigorous evaluation, you can create small grout cubes from a sample area, cure them under controlled conditions, and perform a compressive strength test following standard procedures. Adhesion checks — such as a controlled pull on a small grout-to-tile edge sample — help confirm bond to the substrate. Remember, field results are indicative, not a replacement for professional testing when accuracy is critical.
Safety, preparation, and interpretation considerations
Before testing, ensure the area is clean and dry to avoid moisture skewing results. Wear PPE including gloves and eye protection when handling tools and grout samples. Document every observation with photos and measurements, noting grout type, tile material, and curing time. Interpretation should consider the grout formulation, curing duration, and environmental conditions; a failing test often prompts remediation actions like cleaning and resealing, or in some cases, regrouting with a tougher grout mix or epoxy grout for high-wear areas. As you begin, keep in mind that different grout types (sanded vs. unsanded) behave differently under stress, and old grout can have degraded performance compared to new installations. Grout Maintenance emphasizes that consistent testing intervals after major cleaning, sealing, or remodeling yield the most actionable maintenance plan.
How to plan a testing program and next steps
If initial scratch tests show edge softness or quick chipping, plan a more formal evaluation using composite samples from non-visual grout joints and, if needed, a lab to verify compressive strength. In moisture-prone zones, test for water permeability along grout lines as part of your assessment. Based on results and a professional consultation, you may choose to regrout, reseal, or replace sections to restore tile integrity. The goal is not to chase perfect numbers but to ensure the grout will perform adequately for the expected life of the installation. The Grout Maintenance team recommends documenting outcomes and scheduling follow-up checks after major cleaning or exposure to water.
Authority sources (for further reading)
- ASTM C109/C109M – Standard Test Method for Compressive Strength of Hydraulic Cement Mortars (grout cube testing guidance)
- US-based tile and grout guidelines from major publications and industry groups
- Nationally recognized cement and concrete standards publishers
Authority sources
- ASTM C109/C109M: https://www.astm.org/Standards/C109.htm
- U.S. Green Building Council (USGBC): https://www.usgbc.org/
- Cement and Concrete Standards (major publications): https://www.astm.org/
Tools & Materials
- Small grout sample cubes or molds (2x2x2 inches)(For compression tests on cured grout samples.)
- Utility knife or grout saw(To extract a grout sample without damaging surrounding tile.)
- Ruler or caliper(To measure sample dimensions accurately.)
- Rubber mallet or wooden block(Used gently to avoid chip when extracting samples.)
- Safety gear (gloves, safety glasses)(Protection during sampling and testing.)
- Pencil and notebook or digital tablet(Record observations and dimensions.)
- Clean cloth and isopropyl alcohol (optional)(For cleaning grout joints before testing.)
- Adhesion test setup (pull-off tester or improvised jig)(Optional, for bond-strength checks.)

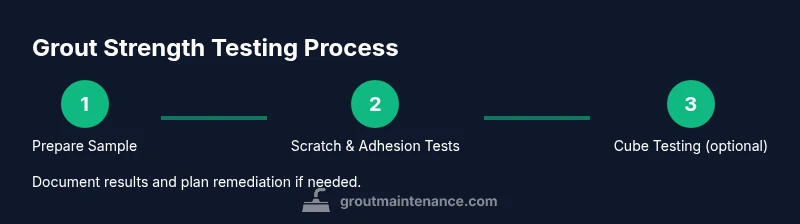

Steps
Estimated time: 1-3 days
- 1
Gather tools and prep area
Collect all required tools and set up a clean, dry workspace around the tiled area. Ensure you understand the grout type (sanded vs unsanded) as this affects testing methods and safety.
Tip: Wear PPE and protect surrounding tiles with painter's tape to keep edges clean. - 2
Extract a grout sample for cube testing
Carefully cut or remove a small grout section to create a sample slab or allow a cube mold to be filled with grout. Preserve as much surrounding grout as possible to avoid influencing cure conditions.
Tip: Make sure the sample is uncontaminated by cleaners or sealants. - 3
Prepare and cure the sample cube
Place the filled cube in a controlled environment that matches typical cure conditions for the grout type (stable temperature and humidity). Allow to cure for the minimum recommended time by the grout manufacturer (usually 24-48 hours) before testing.
Tip: Avoid exposing the sample to direct sunlight or drafts that could alter curing. - 4
Perform a scratch test on installed grout
With a fingernail or plastic blade, apply a light, steady drag along the grout joint in a non-sulfate area. Note brittleness, texture change, or crumbling. Compare with a known-good section if available.
Tip: Use consistent pressure and multiple passes to evaluate consistency. - 5
Conduct a basic adhesion check
Apply a controlled pull or small torque to a sample edge where grout bonds to tile. Record the amount of force needed before detachment, and inspect the failure mode (tile or grout failure).
Tip: If you lack a tester, a simple tape pull test can provide rough insight, though it's less precise. - 6
Optionally test cube compressive strength
After curing, place the cube in a suitable loading setup and apply load gradually until failure. Record maximum load and calculate approximate strength using cube dimensions.
Tip: If you don't have a press or mold, rely on field tests and consult a professional for precise results. - 7
Document results and plan remediation
Summarize findings with photos, measurements, and observations. If grout strength is weak, plan resealing, regrouting, or replacement in the affected zones.
Tip: Correlate test outcomes with moisture exposure—areas near showers often require different treatments.
Got Questions?
What is considered a strong grout bond for most residential installations?
A strong grout bond resists normal cleaning and foot traffic without visible cracking or crumbling. It should maintain adhesion to both tile and substrate after curing and exhibit consistent hardness along joints. Because grout formulations vary, refer to the manufacturer’s guidelines and, if in doubt, conduct multiple tests across representative areas.
A strong grout bond resists everyday wear and keeps joints intact after curing. Always compare to manufacturer guidelines and test multiple areas if you’re unsure.
Can grout strength vary within the same installation?
Yes, grout strength can vary due to uneven curing, moisture exposure, or differences in grout mix consistency. Regions near showers or sinks may perform differently than dry areas. Conduct a few tests across representative zones to get an accurate overall picture.
Grades of grout strength can differ across a surface, especially in moisture-prone areas. Test several spots to understand the range.
Is it safe to test grout strength on an installed floor or wall?
Testing should be done carefully to avoid damaging tiles or grout joints. Use light tools, work in non-traffic areas if possible, and wear PPE. If you are unsure, consult a professional before applying force near edges or grout lines.
Yes, but proceed slowly with protective gear and avoid aggressive force near tiles. When in doubt, get a pro.
How long should grout cure before testing?
Cure time depends on grout type and environmental conditions. Many cementitious grouts require 24-48 hours under controlled conditions before testing, with full cure taking several days. Always follow the grout manufacturer's recommendations for cure times.
Wait for the grout to cure per the manufacturer’s guidance, typically 24-48 hours before testing, and longer for full cure.
What should I do if grout fails the test?
If grout fails, inspect the surrounding area for moisture intrusion, cleaning residues, or improper mixing. Plan remediation such as cleaning and resealing, or regrouting the affected joints. In high-moisture zones, epoxy grout can provide greater durability.
If it fails, identify moisture or installation issues and consider resealing or regrouting; epoxy grout might be a better option for durability.
Watch Video
The Essentials
- Assess grout strength with both field checks and, when possible, lab-like cube tests.
- Document conditions, cure time, and sample dimensions for meaningful results.
- Use results to guide maintenance—regrout or reseal if bond or surface integrity is compromised.
- Follow manufacturer guidance and safety protocols to avoid damage or injury.
- Consult a professional for high-stakes installations or ambiguous results.
