Grout Spacing Examples: Patterns and Widths Guide for Tiles

Grout spacing fundamentals

Grout spacing is more than a visual detail; it governs the performance and upkeep of tiled surfaces. The gap between tiles affects cleaning access, moisture control, and how the grout holds up over time. According to Grout Maintenance, spacing decisions are driven by tile size, edge finish, pattern, and the grout you plan to use. The team highlights that consistent gaps help minimize lippage and create uniform lines that are easier to clean. Start by validating layout with spacers on multiple sections of the floor or wall, then compare the look in both natural daylight and artificial lighting. Remember that temperature changes, substrate movement, and grout shrinkage can slightly alter final gaps, so plan for small tolerances and test spacing with a dry layout board before you commit to adhesive and grout.

Standard spacing ranges and their applications

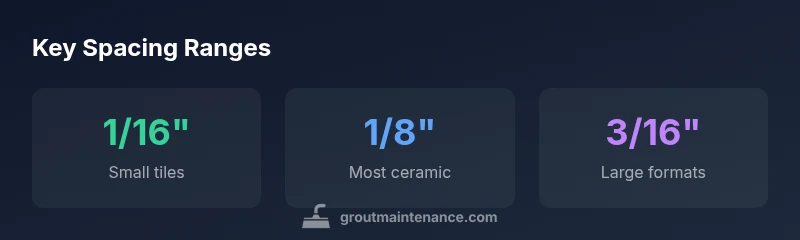

There isn’t a single “one size fits all” width for grout joints. Common rules of thumb include:

• 1/16 inch for very small tiles or mosaic sheets where unsanded grout is typical.
• 1/8 inch as the default width for most ceramic tile installations and standard patterns.
• 3/16 inch for larger format tiles or when a more pronounced joint look is desired.
• 1/4 inch for very large tiles or natural stone where more movement tolerance is needed.

Choosing the right width also depends on grout type (unsanded vs sanded) and anticipated movement. Grout Maintenance notes that larger gaps can help prevent cracking in stone, but they may show more dirt and require more maintenance. Test layouts with different spacings to see what reads best on your surface, especially in showers or outdoor areas.

How tile size drives spacing decisions

Tile size strongly dictates spacing. Small tiles and mosaics often work with narrow joints (1/16 or 1/8 inch) to keep lines tight and maintain a cohesive look. Medium tiles (4–8 inches) typically use 1/8 inch spacing, while large-format tiles (12 inches and up) often benefit from 3/16 inch or wider gaps to accommodate slight tile and substrate deviations. When patterns involve offset layouts or herringbone designs, spacing may need to be adjusted to preserve consistent grout lines across the sheet. In all cases, plan for expansion joints in long runs or exterior installations, which helps absorb movement without cracking the grout.

Grout types and spacing compatibility

Sanded grout is usually recommended for joints wider than 1/8 inch because it resists shrinking and cracking in wider gaps. Unsanded grout works well for joints at or below 1/8 inch and on delicate surfaces where sand could scratch. When spacing is widened (3/16–1/4 inch), sanded grout becomes more important for durability. If you’re dealing with natural stone, consider slightly wider gaps (often 3/16 to 1/4 inch) to allow for stone movement and cleaning ease. Always verify the tile manufacturer’s guidelines and test a small area to confirm color, texture, and performance with your chosen grout.

Practical verification steps for spacing on a project

Before committing to full installation, perform a live test:

• Create a dry layout using spacers to simulate final joints on a representative area.
• Mark reference lines with a chalk string to ensure straight grout lines across long runs.
• Install a small sample panel with your chosen spacing and grout type, then observe how it reads in different lighting and moisture conditions.
• Check that spacers are still visible or easily removed after adhesive cures, ensuring that the grout width remains consistent.

Grout Maintenance recommends testing multiple sections and documenting edge cases (corners, uneven substrate, and transitions) to avoid surprises later in the project.

Real-world spacing examples by tile size

• Small mosaic tiles (2 inches or smaller) often use 1/16 inch gaps with unsanded grout for a tight mosaic look. This helps minimize joint visibility while keeping grout lines manageable.
• Medium-format tiles (6–12 inches) commonly use 1/8 inch gaps; this range balances visual line continuity with accommodation for thermal movement and substrate irregularities.
• Large-format tiles (12 inches and up) frequently adopt 3/16 inch to 1/4 inch gaps to reduce lippage and accommodate natural stone or porcelain expansion. The wider joints can also facilitate cleaning and maintenance in high-traffic areas.

For any of these scenarios, plan for expansion joints in long corridors or exterior installations to prevent stress cracking in the grout. The goal is a clean, uniform appearance and durable performance over time.

Common mistakes and how to avoid them

Avoid over-tightening joints or forcing spacers into misshapen gaps; this can create lippage or micro-fractures as the tile expands and contracts. Don’t rely on a single joint width across a large, irregular surface—vary spacing slightly to accommodate substrate irregularities. Never ignore manufacturer recommendations for tile size, pattern, and grout type. Always verify joint width in the actual room conditions, not just theory, and consider using adjustable spacers and a straightedge for long runs to maintain parallel lines.

Maintenance considerations and expansion joints

Grout spacing should be planned with maintenance in mind. Wider joints are easier to clean but may accumulate more grime; narrower joints require precise cleaning and sealing considerations. Include expansion joints in large areas, showers, and exterior surfaces to accommodate movement and moisture cycling. Periodic resealing and regrouting (when grout shows staining or cracking) are simpler and more cost-effective when joints are appropriately spaced from the start. Grout Maintenance emphasizes testing and documenting tolerances to simplify future maintenance.
