Recommended Grout Width: A Practical Guide for Tile Joints

What 'recommended grout width' means in practice

The term recommended grout width refers to the vertical or horizontal space left between adjacent tiles that is filled with grout. In most home tile projects, the aim is to balance strength, cleanability, and aesthetics. The first step is to understand that the keyword is not a single fixed measurement but a range that accommodates tile size, edge finish, substrate flatness, and movement. For the majority of ceramic and porcelain installations, a narrow joint in the range of 1/16 inch to 1/8 inch (about 1.5–3 mm) is considered standard practice. This range supports easy cleaning, minimizes visible grout lines, and reduces the risk of cracking from normal substrate movement. However, the width can expand to accommodate larger formats or irregular substrates. In practice, many pros start with 1/8 inch as a baseline and adjust based on specific tile thickness, design intent, and manufacturer guidance. Grout color and finishing can also influence perceived width, so consider how the joint will read on a finished surface as you select a width within the practical range.

How tile size and spacers influence width

Tile size is the primary driver of grout width. Small-format tiles (under 4 inches) often pair with narrower joints to reduce grout visibility and breaklines, while larger tiles can tolerate wider joints to accommodate minor substrate variations. Spacer systems—plastic guides placed between tiles during set—help maintain uniform width across the job. When using spacers, it’s essential to verify that the chosen width is compatible with tile edges and the overall layout. For very large tiles, substitution of spacers with precise measurement tools or measurable gauges can help ensure consistency, especially on walls where back-buttering or thin-set thickness can change the final joint appearance. Always test a sample area to confirm that the joint width remains uniform through curing.

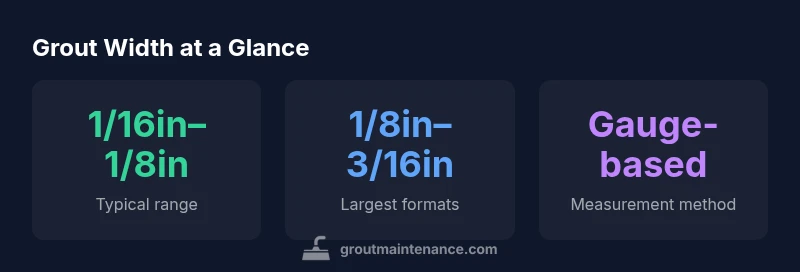

Typical width ranges by tile format

• Small-format ceramic or porcelain tile (less than ~4 inches): 1/16 inch to 1/8 inch. These narrow joints support tighter layouts and cleaner lines.
• Standard ceramic or porcelain tile (4–12 inches): 1/16 inch to 1/8 inch, with a practical bias toward the lower end for high-traffic areas.
• Large-format tile (over 12 inches): 1/8 inch to 3/16 inch. Slightly wider joints help accommodate substrate tolerances and differential movement.
• Very large formats or natural stone with honed edges: consult the tile manufacturer; you may extend toward 3/16 inch or more depending on edge finishing and sealing needs.

Measuring and testing grout width on the job site

Begin with a dry layout and choose a baseline width that aligns with tile size and manufacturer recommendations. Use a set of spacers and a caliper or a precision gauge to verify spacing on multiple tiles across the area. After applying thin-set and allowing curing, inspect the joints for uniformity. If you notice areas with uneven gaps, adjust with a hand float or trowel as appropriate, and re-check with the gauge. For walls, consider gravity and plaster thickness, as these factors impact whether a slightly larger joint is required to maintain a consistent look across the surface.

Grout width and sealing decisions

Sealing affects grout color saturation and staining resistance but does not typically alter the mechanical width of the joint. Some sealers darken or brighten grout slightly, which can visually affect perceived width. If you plan to seal, choose sealers compatible with your grout type (unsanded vs. sanded) and monitor color changes in a test area before applying widely. For epoxy grouts, recommended widths are often slightly wider to account for the polymer matrix, while cementitious grouts rely more on precise width to ensure uniform appearance and staining resistance. Always refer to the grout manufacturer’s guidelines for sealing compatibility and recommended minimum widths.

Practical mistakes to avoid

• Using a width that is too narrow for your tile size or movement potential, increasing crack risk.
• Relying on a single width across an uneven substrate; variation can create visual and functional issues.
• Skipping a calibration test in a sample panel; real-world dispensing can differ from spec sheets.
• Ignoring edge finishes and corner details, which can visually skew width perception.
• Sealing early or inconsistently, which can affect grout color and perceived width. A deliberate, measured approach minimizes these issues.

Tools and techniques to maintain width consistency

• Use high-quality spacers and a caliper to verify real-time spacing during installation.
• For large formats, consider a mid-range width and validate with a mock-up panel before full installation.
• Employ leveling systems to prevent edge dip or tile tilt that could skew joint width.
• Regularly clean edges during tool-down to prevent grout smearing, which can distort width perception.
• Document measurements from sample panels and replicate across similar sections to preserve uniformity.

Case studies: small-format vs large-format tile

In a kitchen backsplash using small-format ceramic tiles, a 1/16 inch joint created a tight, clean look while still allowing for grout cleaning and maintenance. In contrast, a living room with large-format porcelain slabs used a 1/8 inch joint to accommodate slight substrate misalignment and to avoid grout cracking under foot traffic. The takeaway is that the same general principle applies—start with a conservative baseline for joint width and adjust based on tile format, edge finish, and substrate realities. Testing a mock area that mirrors real conditions helps avoid surprises in the finished space.

Quick-start checklist for your project

• Confirm tile manufacturer recommendations and substrate tolerances.
• Choose a baseline grout width within 1/16 inch to 1/8 inch based on tile size.
• Prepare layout with spacers, test a sample panel, and measure with a gauge.
• Plan for movement joints in large areas and near transitions.
• Select grout type (sanded vs. unsanded) compatible with width and tile edge.
• Consider how sealing will affect color and perceived width, and test accordingly.
• Monitor during grouting and curing for uniform width across all joints.
