What Size Grout Spacers to Use: A Practical Guide
Learn how to choose grout spacer sizes for tiles, with practical ranges for small, standard, and large-format tiles. Get step-by-step tips, a data-backed approach, and a quick-start checklist for your next tiling project.

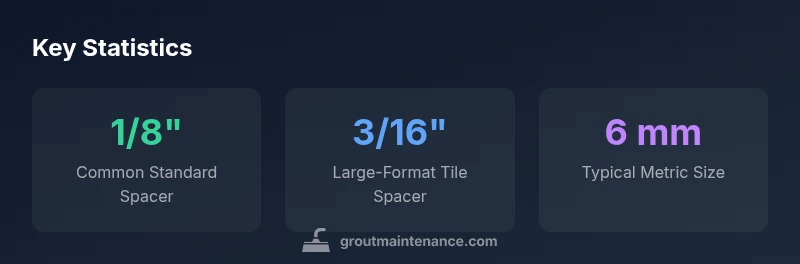

According to Grout Maintenance, the most common grout spacer size for typical ceramic tile is 1/8 inch (3 mm). For tighter joints on small tiles, use 1/16 inch (1.5 mm); for large-format floors or rectified edges, 3/16 inch to 1/4 inch (5–6 mm) is typical. Always align spacing with your tile and grout width plan.
Understanding how spacer size affects grout joints
Choosing the right grout spacer size directly shapes the width of the grout joint, which influences the tile layout, the final look, and how easy cleaning and sealing will be. If you’re asking what size grout spacers to use, the answer depends on tile size, edge finish, and the appearance you want. According to Grout Maintenance, the typical starting point for standard ceramic tile is 1/8 inch (3 mm). For smaller tiles or tight joints, 1/16 inch (1.5 mm) can work, while large-format tiles or floors often call for 3/16 inch to 1/4 inch (4–6 mm). This range helps preserve proportional joints while keeping maintenance reasonable. If tiles have rectified edges, you can opt for narrower joints; if edges are non-rectified or rounded, a wider gap often yields a cleaner, more forgiving grout line. Always test a layout before setting adhesive and grout to confirm the look.
Mapping spacer sizes to tile formats
Spacer size must harmonize with tile format. For small mosaics or tile sheets under 2 inches, spacers in the 1/16 inch to 1/8 inch range keep joints visually balanced without crowding. Standard ceramic and porcelain tiles in the 4–12 inch range typically use 1/8 inch spacers as the default. Large-format tiles (12 inches and up) often benefit from 3/16 inch to 1/4 inch spacers to maintain proportional joints and reduce edge crowding. Rectified tiles allow narrower joints, but non-rectified edges usually perform better with a slightly wider gap to accommodate minor size variations and grout settling. Always account for grout type (epoxy vs cementitious) which can influence joint appearance and grouting time.
Rectified vs non-rectified edges and joint width
Rectified tiles are cut flat and designed for tight, consistent joints, typically 1/8 inch or narrower when fully planned. Non-rectified tiles have slight size variations and can benefit from a slightly wider gap, such as 3/16 inch, to mask inconsistencies. The choice affects both aesthetics and maintenance: narrower joints show more dirt and require better sealing, while wider joints may be easier to clean but can alter the tile proportions. In high-traffic areas, the joint width should also balance durability and cleaning feasibility. Grout color and sealant choice further influence how noticeable the joints become.
Practical guidelines by tile size and joint width
Follow a tile-format guide to estimate spacer size: for small tiles up to 4 inches, start with 1/16–1/8 inch spacers; for standard 4–12 inch tiles, use 1/8 inch spacers; for large-format tiles 12 inches and up, plan for 3/16–1/4 inch spacers. When possible, test a small layout with the chosen spacers to verify alignment and visual proportions before committing to adhesive and grout. If you’re unsure, prefer slightly wider gaps and adjust grout width in the final mix rather than forcing a tight joint that may crack or be hard to grout.
How to test spacers in a layout
A practical test layout helps confirm spacer choice before full installation. Dry-lay a small section using the same tile and surface to evaluate joint width, tile edge alignment, and overall proportion. Use spacers of the intended size at several joints and check grout line continuity after a mock grouting attempt. If the joints appear too narrow or too wide, adjust by switching to a neighboring size (for example, swap 1/8 inch spacers for 3/16 inch in the affected area) and re-test.
Common installation mistakes and how to avoid them
Avoid uniform misalignment by verifying each row with a straight edge and clamp the layout tape to prevent tile creep during adhesive setting. Do not assume all tiles are exactly the same size; measure several tiles from a batch and account for size variance. Always dry-fit first, then grout after the adhesive cures. Use the recommended spacer sizes consistently to maintain even joints, and consider using spacer crosses or corner spacers for precise intersection alignment.
Spacer recommendations by tile size
| Tile Type | Recommended Spacers | Notes |
|---|---|---|
| Small tile (≤4 in) | 1/16"–1/8" | Consider 1/16" for tight joints |
| Standard tile (4–8 in) | 1/8" | Most common for ceramic & porcelain |
| Large-format tile (≥12 in) | 3/16"–1/4" | Plan for slight size variation; bevels matter |
Got Questions?
What size spacers should I use for standard ceramic tiles?
For standard ceramic tiles, a starting point of 1/8 inch spacers is typical. If you want a tighter appearance, you can test 1/16 inch. For large tiles or rectified edges, move toward 3/16 inch as needed. Always verify with a mock layout before grouting.
For standard ceramic tiles, start with 1/8 inch spacers and test a small layout to confirm joint width.
Can I mix spacer sizes within a single layout?
Yes, you can mix spacer sizes to compensate for tile edge irregularities, but keep the differences minimal and test thoroughly. The goal is a uniform-looking joint across the area.
You can mix sizes, but test a sample area to ensure the joints look even.
How does tile edge type affect spacer size?
Rectified tile edges allow narrower joints, often 1/8 inch or less, while non-rectified edges benefit from slightly wider gaps to hide size variations.
Rectified edges let you use smaller spacers; non-rectified edges may need a bigger gap.
Are spacers needed for shower tiles on walls?
Spacers are recommended for tile walls in showers to maintain consistent joints, reduce lippage, and ease cleaning. Choose spacers compatible with the grout and sealant you plan to use.
Yes—use spacers for shower walls to keep joints even and easy to clean.
Where can I buy grout spacers?
Spacers are widely available at home improvement stores, tile shops, and online retailers. Look for spacer sets that include multiple sizes to allow quick testing during layout.
You can buy spacers at most tile or home improvement stores, or online.
“Accurate grout spacing is the backbone of a durable tile installation. Start with a conservative spacer size, test, then adjust as needed to preserve proportion and ease of maintenance.”
The Essentials
- Choose spacer size to match tile size and edge finish
- Use larger spacers for large-format tiles to maintain proportional joints
- Rectified edges allow narrower joints; non-rectified need wider gaps
- Test a layout first to verify appearance before grouting
