Grout Joint for 12x24 Tile: Best Practices Guide Tips

Why the grout joint width matters for 12x24 tile

The grout joint for 12x24 tile is more than a cosmetic detail; it affects durability, cleaning ease, and the tile system's overall performance. Large-format tiles are inherently less forgiving than small tiles because each tile spans a larger area and carries more weight. Substrate movement, temperature changes, and installation tolerances all interact with grout width. A joint that is too narrow can trap movement stresses within the grout bead, causing cracks that allow water intrusion and soil buildup. Conversely, a joint that is too wide can look unbalanced, invite quicker dirt accumulation, and complicate cleaning. According to Grout Maintenance, selecting the right joint width is a balancing act between movement accommodation, finish quality, and maintenance practicality. In typical homes, a joint width of 1/8 inch to 3/16 inch provides a good compromise, especially for non-rectified tiles or floors with mild substrate irregularities. The exact width you choose should be tested in a small area before proceeding. Use spacers to verify uniformity, and check for consistent depth to avoid grout shadowing. Another practical tip is to consider the grout filler depth relative to the tile thickness; too shallow fills can expose tile edges during cleaning, while too deep fills can undermine color uniformity. This approach helps maintain the tile system's integrity over time and limits long-term maintenance costs.

Rectified vs non-rectified tiles: how tile tolerances affect joint width

Rectified tiles are ground to uniform edges, but real-world installations still exhibit minor width variations across a 12x24 tile sheet. The grout joint for 12x24 tile should consider these differences: while rectified tiles tolerate narrower joints, non-rectified tiles benefit from slightly wider spacing to accommodate edge irregularities. Because rectified tiles often survive with 1/8 inch spacing, you should still verify each tile’s tolerance with a quick spacer test. For non-rectified tiles, you may increase to 3/16 inch, but avoid creating visibly misaligned grout lines that stand out. Also, substrate flatness and back-buttering technique influence the final joints. In both cases, consistency is key; uneven gaps can lead to lippage that undermines safety, and inconsistent joints can make cleaning harder. When you cannot guarantee uniform spacing due to imperfect tile edges, err on the side of wider joints and adjust the grout thickness to protect the tile’s edge. The Grout Maintenance Team notes that matching joint width to tile tolerances reduces failures and improves long-term appearance.

Practical guidelines: measuring, spacing, and grout selection

Getting the grout joint for 12x24 tile right starts long before you mix grout. Begin with a dry-run: place a row of tiles with spacers over the full area to observe perceived width and alignment. Use a level to confirm flatness and a straight edge to detect high spots. Once the area looks good, measure several spacings at different points; if you see more than 1/16 inch variation, re-check substrate flatness and back-buttering technique. For most 12x24 installations, aim for 1/8 inch to 3/16 inch, then pick a grout type aligned with the joint width. Cement-based sanded grout is the default for joints at 1/8 inch or wider because the sand particles help resist chipping and edge wear. In tighter joint zones, consider unsanded grout only if you reach a true 1/16 inch width; otherwise, the risk of voids and staining increases. Epoxy grout is another option for high-traffic areas or kitchens where stain-resistance is critical, but it demands careful mixing and longer cure times. After applying grout, mop and remove haze promptly to maintain color consistency. Finally, plan for sealing after the grout has cured to protect against moisture ingress and staining over time.

Common mistakes and troubleshooting

Even seasoned DIYers fall into common traps when working with the grout joint for 12x24 tile. The most frequent mistake is using too-narrow a joint, which concentrates movement into the grout and accelerates cracking. Another error is inconsistency in spacing during tile placement, which produces wavy grout lines that are difficult to clean. Skipping a spacer check after back-buttering or cursing down the tile surface can also lead to irregular joints. Not performing a proper test area before full grouting makes it harder to adjust width and depth. In wet areas like showers, failing to use a sealant compatible with your grout type invites mold and mildew in the joints. If you notice efflorescence or surface haze after cleaning, it often indicates over-wetting or improper cleaning techniques during grouting. When problems do occur, the remedy is usually re-grouting with the correct joint width and a suitable grout choice, followed by thorough cleaning and sealing. The Grout Maintenance Team recommends documenting the original tile tolerances and keeping spacers on hand for any future repairs to prevent recurrence.

Finishing touches: sealing, cleaning, and maintenance schedule

After the grout has cured, sealing is a critical step for most cement-based grouts. A typical seal time is 48 to 72 hours after grouting, depending on room humidity and grout type. In kitchens and bathrooms, use a penetrating sealant designed for cement-based or epoxy grouts; re-seal every 1–2 years or as recommended by the product manufacturer. Regular cleaning with a pH-neutral grout cleaner helps maintain color uniformity and reduces stain buildup in the joints. Avoid harsh chemical cleaners that can degrade the grout surface over time. For large-format tiles like 12x24, keeping a consistent cleaning routine prevents dirt from settling into wider joints. If you notice staining or mold growth, address it promptly with a dedicated grout cleaner and re-seal if needed. Finally, during renovations or re-grouts, reassess the joint width in light of tile tolerances and substrate aging to ensure a durable, long-lasting result.

Quick-start checklist for 12x24 tile grout joints

• Confirm tile tolerances with a spacer test in multiple locations.

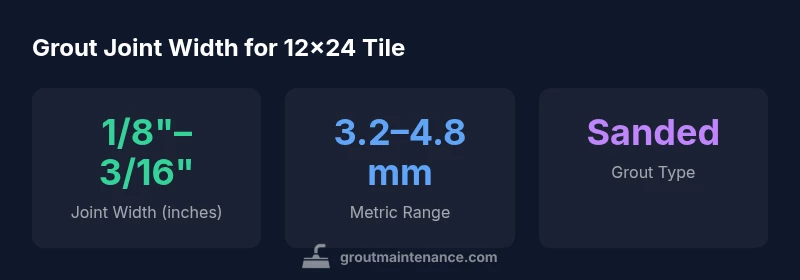

• Choose a joint width in the 1/8 inch to 3/16 inch range based on tile edges and substrate flatness.
• Select sanded grout for joints 1/8 inch and wider; consider epoxy grout for high-stain areas.
• Allow grout to cure fully (48–72 hours) before sealing.
• Apply a penetrating sealant after curing and reseal every 1–2 years.
• Clean with a pH-neutral cleaner to maintain color and prevent buildup.
• Inspect annually for hairline cracks or color changes and re-grout if needed to preserve strength.
